PM01 Ultrasonic Heat Meter

PM01 Ultrasonic Heat Meter

PM01 Ultrasonic heatmeter is a measuring device based on the measuring principle. Ultrasonic heatmeter can be used in hybrid system based heating and cooling systems. In addition, the ultrasonic heatmeter uses water as an energy carrier and precisely calculates the flow rate by sending sound waves against the flow direction and flow direction of the water.

POLİMETER CATALOG

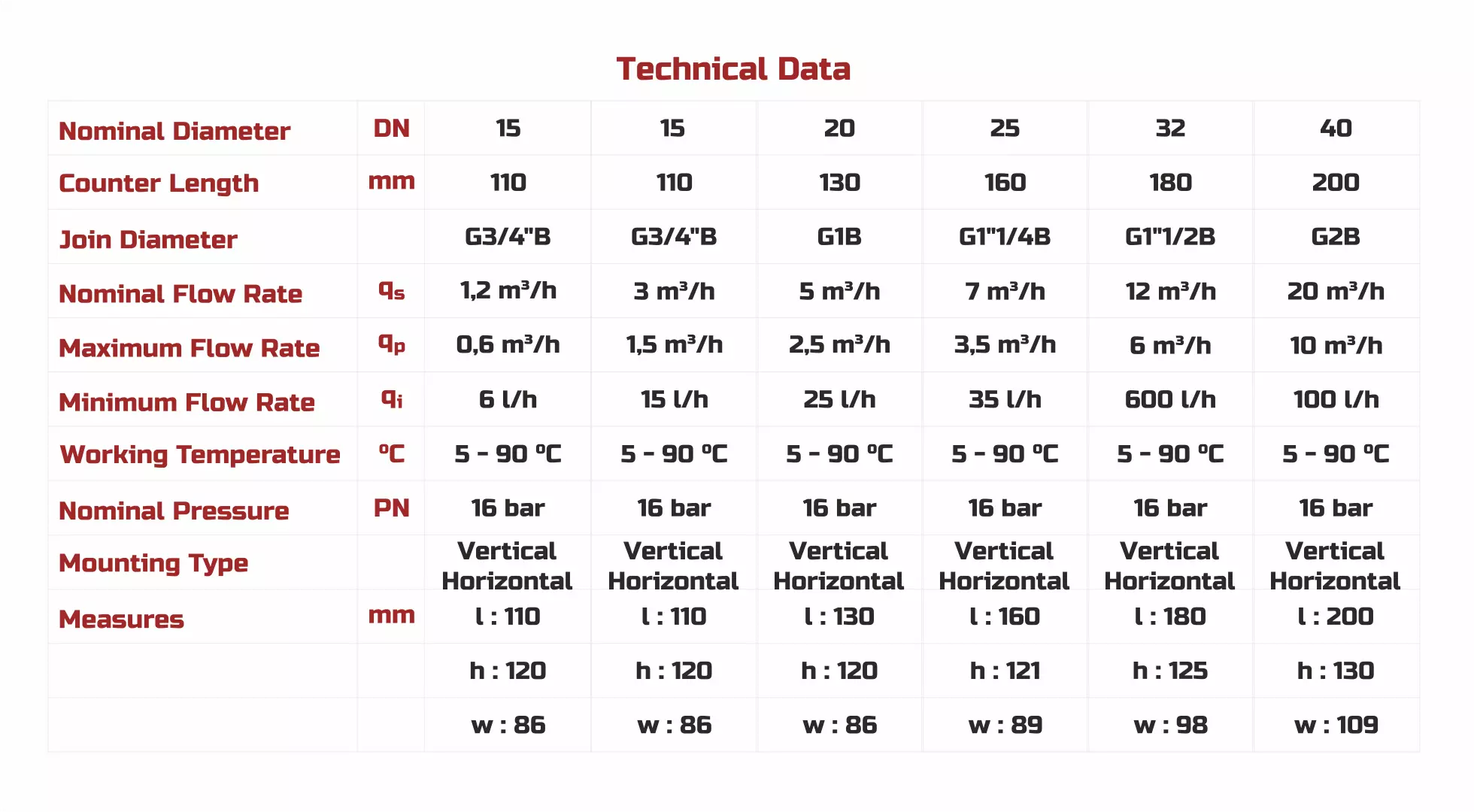

Technicial Specifications

Calculation Unit Technical Data
Measuring Temperature Range 2°C - 150°C
Measurement Temperature Difference 3K - 85K
Working Ambient Temperature 5°C - 55°C
Min. Consumption Calculation Difference 2°C
Heat dissolution 0,01°C
Measuring frequency Dynamic metering 4 - 20 seconds
Screen LCD-8 digits and special characters and backlight
Energy Unit kWh (optionally MWh)
Interfaces M-Bus
Power source 3.6V Lithium Battery
Sensor Type and Length PT 1000
Sensor Diameters 5,0 mm ve 5,2 mm
Sensor Cable Length 1,5 meter
Pulse Cable Length 1 meter
Protection Class IP 65
Measurement Class MID Class 2
Approvals MID ve CE
    HIGH PRECISION, LONG LASTING AND DURABLE HEATMETER
  • The flow meter part is durable and all metal.

  • With its brass body structure, it has been specially designed to withstand the high pressure in its installation and to make the least pressure loss.

  • There are no moving parts inside.

  • Its wear-free structure provides long-lasting and trouble-free operation assurance.

  • Thanks to its specially designed mirrors, it instantly filters the erroneous signals that occur in the water passage channel.

  • Our SPECIAL design eliminates the possibility of inaccurate measurements. Only signals transmitted along the cylindrical tube can be measured.

  • It prevents it from being covered with dirt due to the foreign substances in the hot water. It has the feature of preventing soot and rust and preventing clogging.

  • Airplane wing shaped reflector design provides laminar flow. The calorimeter cleans itself with the flow rate provided on the reflector.

  • The calorimeter is self-cleaning with the flow rate provided on the reflector. It provides high sensitivity even at low flow rates.

  • It has IP65 protection class. It is not affected by moisture, dust and water.

  • According to EN 1434, it consists of 3 main units that measure with compact meter type and hybrid indicator, flow meter of heat meters, pair of temperature sensors and calculation ruler.

    EASY TO USE AND INSTALLATION
  • It is easy to use with its ONE TOUCH EASY feature.

  • It gives you exactly what you are looking for. With its wide screen structure, it has icons that provide easy reading from all directions and make it easier to read.

  • Thanks to the advanced calculator unit, the user can take the meter and read it easily. With its Real Time Clock Feature, you can observe your monthly consumption as date and time for 12 months retrospectively.

  • Thanks to the detachable type calculation unit and spiral connection cable, it allows the calculation unit to be mounted in a different place under difficult mounting conditions, saving space and making the screen visible.

  • It is fully compatible with International Meter Reading Protocols and works in harmony with meter reading systems and smart apartment automation systems.
